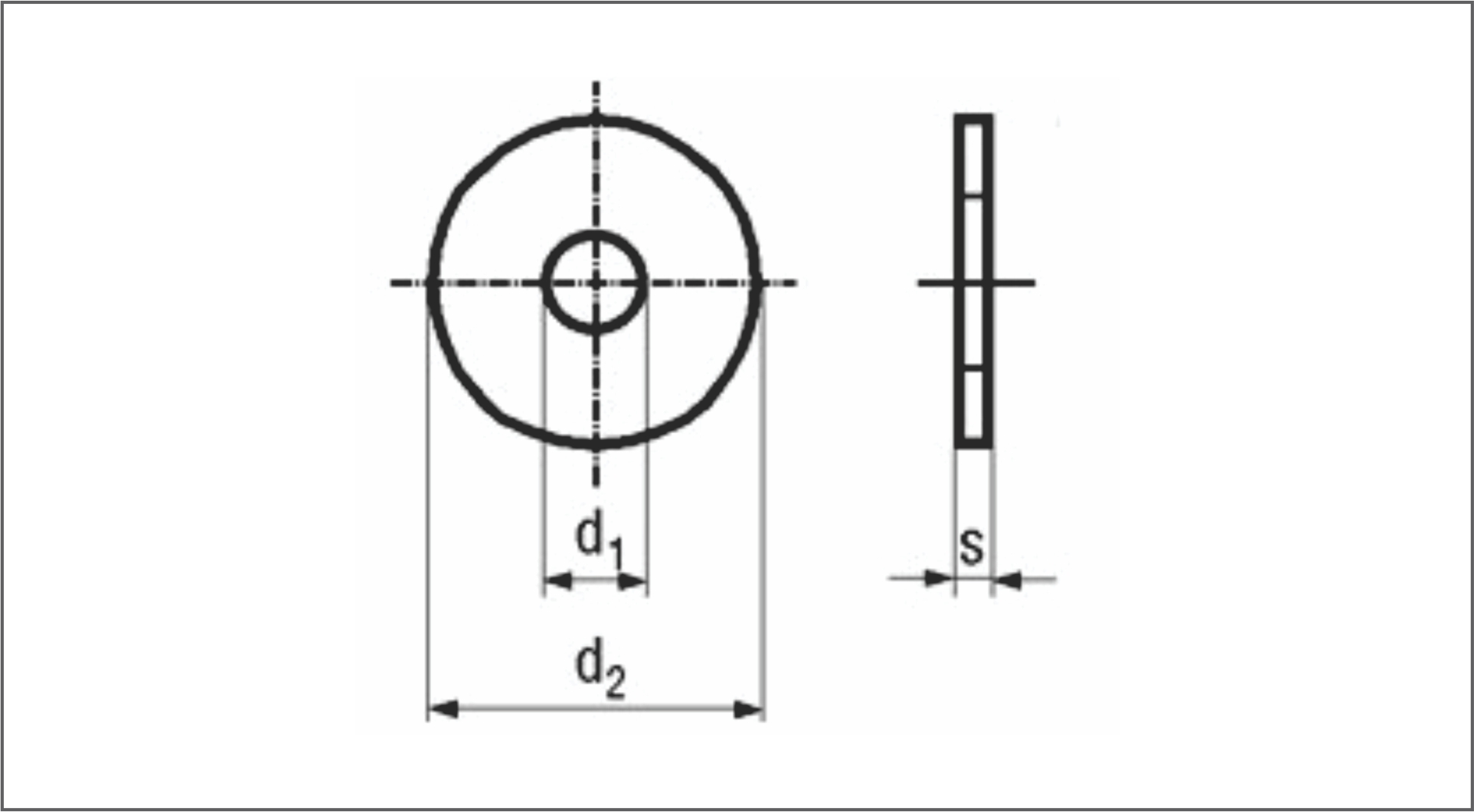

DIN 433 (ISO 7092)

DIN 433

DIN 433 (ISO 7092)

d1 for thread size d2 s
1.1 M 1 2.5 0.3
1.3 M 1.2 3 0.3
1.5 M 1.4 3 0.3
1.7 M 1.6 3.5 0.3
1.8 M 1.7 4 0.3
1.9 M 1.8 4 0.3
2.2 M 2 4.5 0.3
2.5 M 2.3 5 0.5
2.7 M 2.5 5 0.5
2.8 M 2.6 5.5 0.5
3.2 M 3 6 0.5
3.7 M 3.5 7 0.5
4.3 M 4 8 1
5.3 M 5 9 1
6.4 M 11 12 1.6
8.4 M 8 15 1.6
10.5 M 10 18 1.6
13 M 12 20 2
15 M 14 24 2.5
17 M 16 28 2.5
19 M 18 30 2.5
21 M 20 34 3
25 M 24 39 4
31 M 30 50 4
37 M 36 60 5
